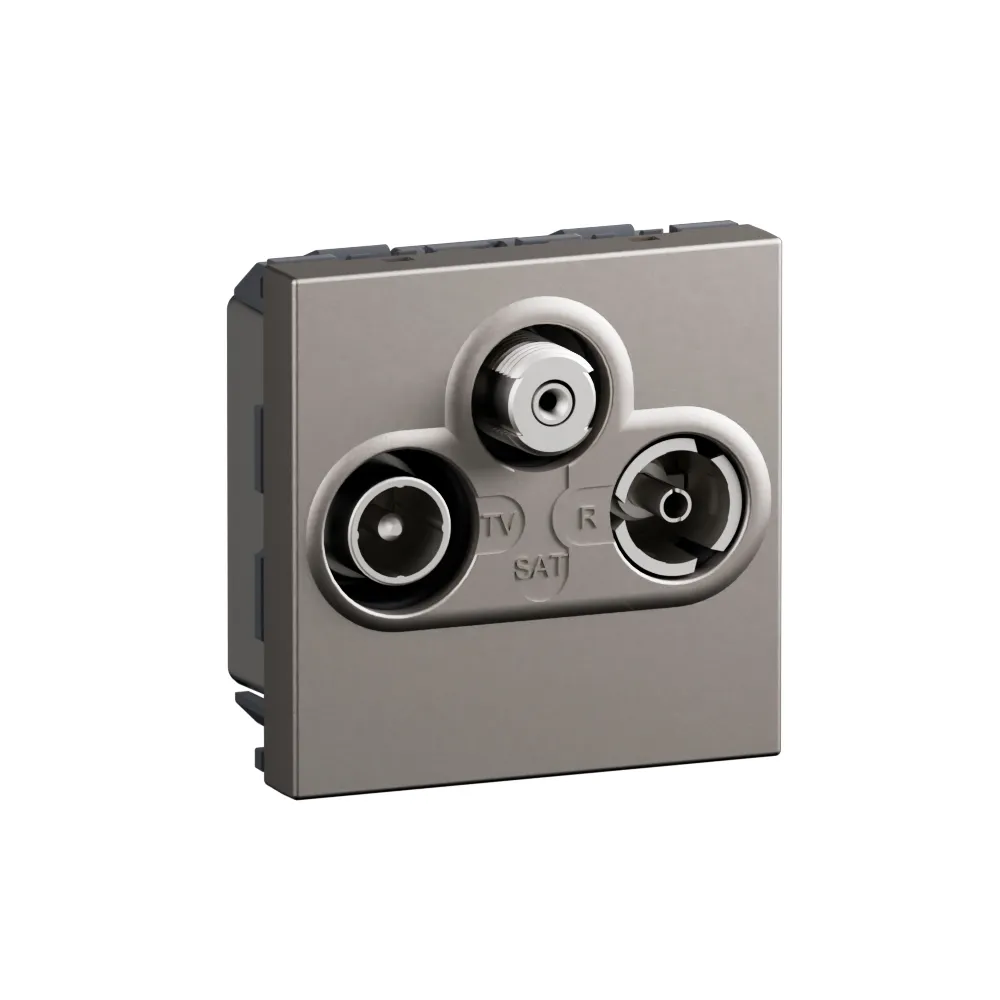

The Arteor Advance Classic Television-Radio-Satellite Socket in Matt Titanium is a high-performance, tri-media distribution interface designed for comprehensive home entertainment systems. This multi-outlet module separates terrestrial TV, FM radio, and satellite signals from a single coaxial drop cable, delivering a clean, centralized connection point for premium residential and hospitality entertainment hubs.
Product Description
Contemporary Aesthetic: Finished in high-quality Matt Titanium, providing a refined, non-reflective metallic appearance that is resistant to fingerprints and smudges.
Tri-Media Signal Distribution: Features three dedicated output ports to simultaneously deliver Television (TV), Radio (FM/AM), and Satellite (SAT) signals without signal cross-talk.
Low-Attenuation Matrix: Engineered with high-precision internal filtering and shielding to minimize signal insertion loss, ensuring crisp, high-definition picture quality and static-free audio.
Ergonomic 2-Module Layout: The 2-module ($45 \times 45$ mm) footprint easily accommodates all three independent coaxial connectors, providing plenty of room for heavy-duty, shielded structural cables on the wall plate.
Classic Design Language: Belongs to the Classic collection, maintaining a signature architectural square profile that integrates cleanly into high-end interior layouts.
Technical Specifications
| Feature | Details |
| Product Code | AC4106MT |
| Module Size | 2 Modules ($45 \times 45$ mm) |
| Outputs | 1 x TV (Male IEC), 1 x FM Radio (Female IEC), 1 x SAT (F-Type Screw) |
| Frequency Range | TV: 4–68 MHz / 120–862 MHz
Radio (FM): 87.5–108 MHz
SAT: 950–2400 MHz |
| Connection Type | Star configuration (Direct back connection) |
| Finish | Matt Titanium |
| Material | High-performance, UV-stabilized thermoplastic with shielded zinc alloy housing |
| Protection Rating | IP20 |
Key Performance Features
Advanced Electromagnetic Shielding: Features a fully enclosed metal chassis behind the plastic trim to block electromagnetic interference (EMI) and radio frequency interference (RFI).
Streamlined Single-Cable Installation: Simplifies room wiring by allowing a single multiplexed structural backbone cable to be split directly at the point of use.
Secure Support Integration: Utilizes a robust snap-on mechanism for quick and tool-free mounting into standard Arteor support frames.
Sustainability: Distributed in biobased, 100% single-use plastic-free packaging to align with modern environmental standards.
